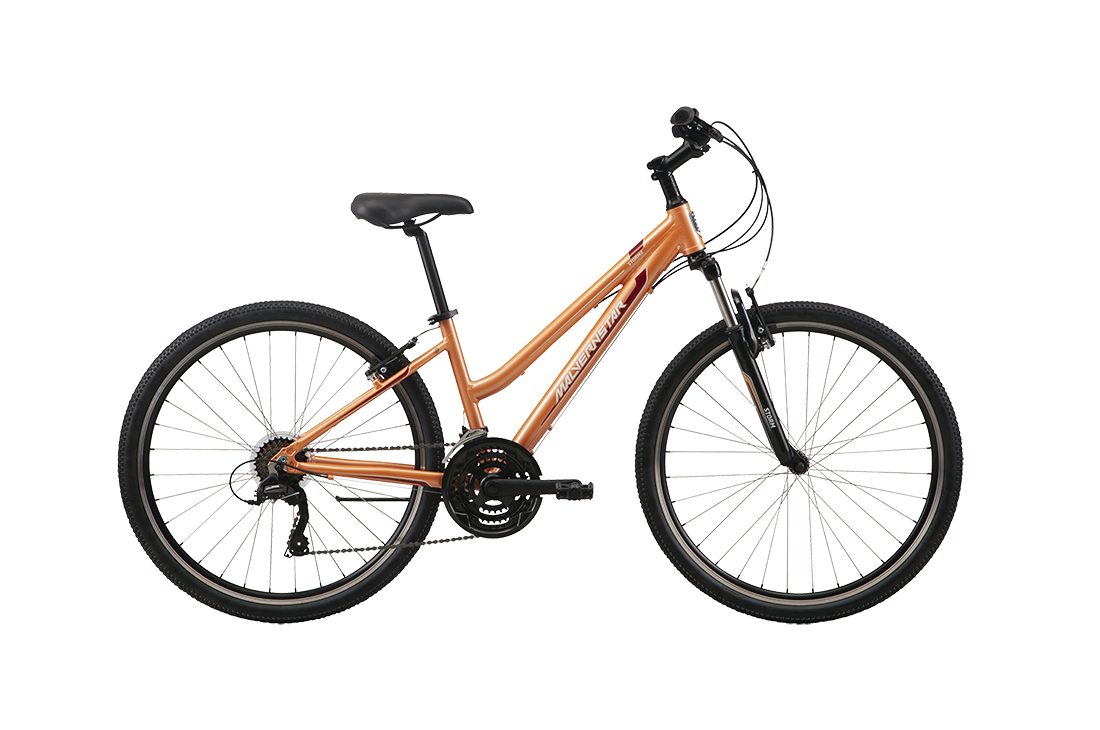

30 Jul Storm 27-2 Women’s Mountain Bike
Lightweight low step-thru’ frames, with suspension forks and wide range gears will let you explore your local terrain. Gel saddles with elastomer shock absorbers, ergonomically shaped grips and
comfort pedals ensure you’ll enjoy a smooth ride. Larger diameter 27.5″ wheels are lightweight and roll along easier, but retain our low standover clearance.
Features
- 21-Speed Shimano gearing
- Alloy cranks
- Lightweight alloy crown Zoom suspension fork
- Alloy seat post
Specifications
| Model | Storm 27-2 |
| Frame | 6061 Alloy, women's specific with integrated headtube and replaceable dropout |
| Fork / Shock | 1 1/8th Zoom Ahead Suspension Fork 80mm Travel, alloy crown/uppers * |
| Wheels | Alloy 32H Double Wall * Fr: Steel 32H QR, Rr: Steel 32H nutted * MTB fast rolling 27.5 x 1.95 |
| Drivetrain | |
| Crankset / Drive | 3 Piece 48/38/28T with Chainguard and alloy crank * MTB Std BB |
| Shifter / Derailleur | Shimano EF500 21-Speed * Shimano TY510 * Shimano TY500 7sp |
| Chain / Cassette | KMC HP6L * Shimano 14-28T 7-Speed Freewheel |
| Components | |
| Brakes | Alloy V-Brake |
| Bar / Stem / Saddle / Post | Steel Riser, 620mm x 60mm rise * Women's MTB comfort with Elastomer/Gel * Alloy 27.2 x 300mm, alloy QR |
Geometry
| Size | XS | S | M | L | |
| A | Seat Tube Length (C-Top) Inches | 13.0 | 14.5 | 16.5 | 18.7 |
| Seat Tube Length (C-Top) mm | 330 | 370 | 425 | 475 | |
| B | Horizontal Top Tube Length mm | 530 | 551 | 570 | 589 |
| C | Head Tube Length mm | 100 | 100 | 105 | 110 |
| D | Head Angle deg | 68.0 | 68.0 | 68.0 | 70.0 |
| E | Seat Angle deg | 75.0 | 73.5 | 73.0 | 73.0 |
| BB Drop mm | 47 | 47 | 47 | 47 | |
| F | Chainstay Length mm | 440 | 440 | 440 | 440 |
| G | Wheelbase mm | 1063 | 1066 | 1081 | 1080 |
