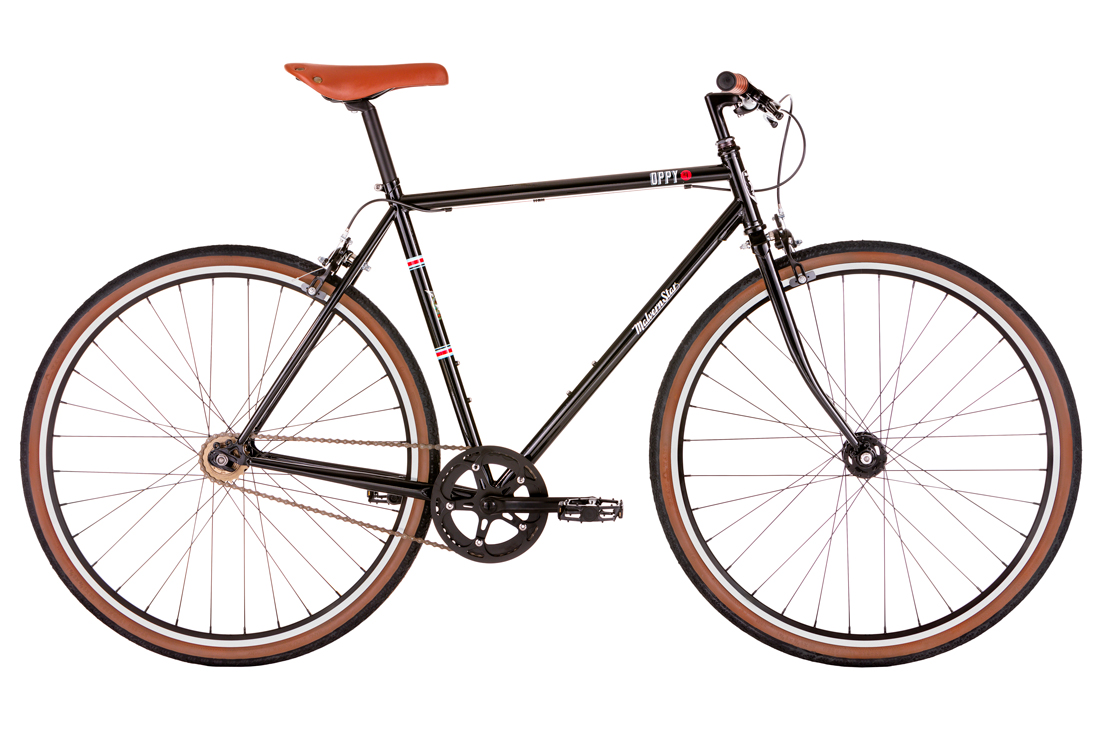

11 Apr Oppy SF1 Heritage Bike
The brand new Oppy SF range builds on the great looks and metro-practicality of our drop-bar Oppy S range. Now with an upright, fast city geometry, riser bars and wide, grippy tyres. The Oppy SF range will get you to school, Uni or work, the cafe, market or the pub, in classic Malvern Star style!
Key Features
Bulletproof Cr-Mo, single speed frame for day-in, day-out city riding
Simple single speed drive train with cool high flange hubs that can be run as a fixed gear
Low rise, handle bar and comfortable retro riveted saddle
All braze ons for racks and fenders front and rear
Specifications
| Model | |
| Frame | Cr-Mo with full rack and fender mounts. |
| Fork | 1" threadedCr-mo, lugged crown, steering stabilizer, full rack/fender mounts |
| Wheels | |
| Wheelset / Rims | Double wall alloy 32H |
| Hubs | Fr: 32H alloy high flange, 32H alloy high flange flip flop |
| Spokes | Stainless silver with silver brass nipples |
| Tyres | Fast rolling 700 x 35c, tan wall w/Hippo Skin Kevlar puncture protection, 30tpi |
| Drivetrain | |
| Shifters | NA |
| Front Derailleur | NA |
| Rear Derailleur | NA |
| Crankset | Forged 44T. 170mm with Chain wheel cover |
| Bottom Bracket | Cartridge |
| Chain | KMC Z410A |
| Cassette | 20T sprocket |
| Components | |
| Brakes | Alloy dual pivot long reach |
| Brake Levers | Alloy 4 finger V brake lever |
| Handlebar | 25mm rise, 5 degree sweep, 600mm |
| Handlebar Stem | Alloy 1" quill 60mm |
| Headset | Tange 1" Threaded |
| Grips | Leather 'look' wrap' |
| Pedals | VP Comfort Platform |
| Saddle | On-the-rivet retro |
| Seat Post | Alloy 27.2, alloy non-QR clamp:300mm |
| EXTRAS | N/A |
Geometry
| Size | S | M | L | XL | |
| A | Seat Tube Length (C-Top) - MM | 530 | 555 | 575 | 585 |
| B | Horizontal Top Tube Length - MM | 520 | 545 | 565 | 585 |
| C | Head Tube Length - MM | 105 | 125 | 145 | 160 |
| D | Head Angle - Degrees | 71 | 71 | 71.5 | 71.5 |
| E | Seat Angle - Degrees | 75 | 73 | 73 | 72.5 |
| BB Drop - MM | 72.5 | 72.5 | 70 | 70 | |
| F | Chainstay Length - MM | 440 | 440 | 440 | 440 |
| Front Centre - MM | 594 | 599 | 615 | 630 | |
| G | Wheelbase - MM | 1023 | 1029 | 1046 | 1060 |
| Fork Offset - MM | 50 | 50 | 50 | 50 | |
| Reach | 374 | 373 | 387 | 397 | |
| Stack | 544 | 563 | 581 | 596 | |
| Handlebar Width CC - MM | 400 | 420 | 440 | 440 | |
| Stem Length - MM | 90 | 100 | 100 | 100 | |
| Crank Length - MM | 170 | 175 | 175 | 175 | |
| Seatpost Length - MM | 350 | 350 | 350 | 350 |
